Product Features
- Compact and stable structure suitable for a large load and high lift.
- Mast reaches and turns backwards, with a small turning radius.
- A branded control system with multiple auto-protection features to provide a higher level of functional safety.
- Branded vertical gearbox, multi-functional solution, and flexible construction module system, optimized gear meshing technology to reduce operating noise, and provide high performance and efficiency.
- EPS reduced 20% energy consumption, operates accurately, reduces driver fatigue, and increases productivity.
- Full AC drive system, strong gradeability, maintenance-free, and no carbon brush. Work stably and efficiently.

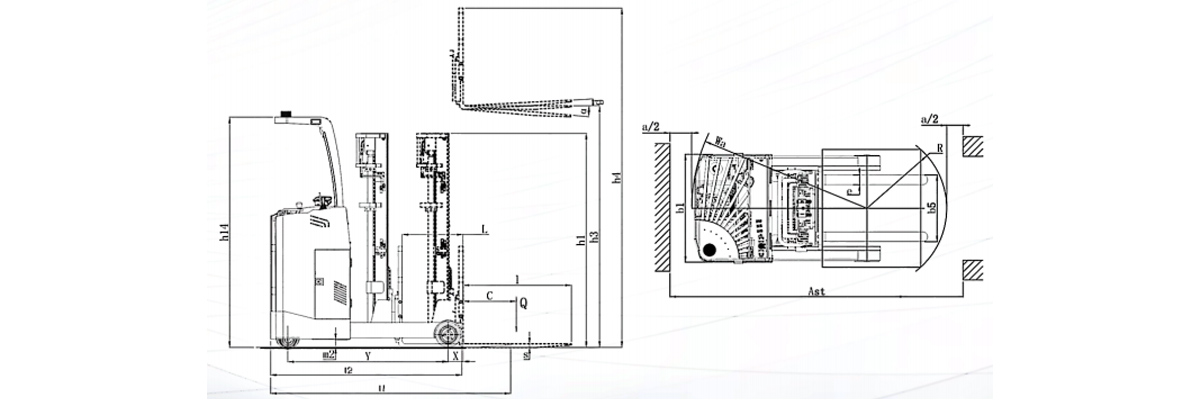

| Characteristics | Model No. | CQD15E-45S | CQD20E-120S | CQD25E-80S | CQD30E-45S | |
| Power Type | Electric | Electric | Electric | Electric | ||
| Operation Type | Seated Type | Seated Type | Seated Type | Seated Type | ||
| Load Capacity | Q(kg) | 1500 | 2000 | 2500 | 3000 | |
| Load Center | C(mm) | 500 | 500 | 500 | 500 | |
| Loading Distance | X(mm) | 183 | 183 | 183 | 183 | |
| Wheelbase | Y(mm) | 1470 | 1650 | 1620 | 1650 | |
| Reach Distance | L(mm) | 505 | 610 | 515 | 610 | |
| Weight | Service Weight(with Battery) | kg | 3000 | 6200 | 4100 | 5860 |
| Wheels, Chassis | Wheel Type | PU | ||||
| Front Wheel | ∅×w(mm) | 267*114 | 267*114 | 267*114 | 280*135 | |
| Drive Wheel | ∅×w(mm) | 382*142 | 382*142 | 382*142 | 382*142 | |
| Front Wheelbase | b10(mm) | 1180 | 1329 | 1180 | 1329 | |
| Dimensions | Mast Height Lowered | h1(mm) | 2105 | 5136 | 3550 | 2485 |
| Free Lift | h2(mm) | 1500 | 4020 | 2660 | 1500 | |
| Lifting Height | h3(mm) | 4500 | 12000 | 8000 | 4500 | |
| Max. Height when Lifting | h4(mm) | 5500 | 12580 | 8965 | 6945 | |
| Height of Overhead Guards | h14(mm) | 2180 | 2180 | 2180 | 2180 | |
| Fork Clearance When Mast Lowered | h13(mm) | 35 | 40 | 45 | 45 | |
| Mast/Fork Title Angle | ° | 3/5 | 3/5 | 3/5 | 3/5 | |
| Overall Length (With Fork) | l2(mm) | 2477 | 2515 | 2477 | 2515 | |
| Overall Width | b1(mm) | 1270 | 1270/1460 | 1270 | 1270/1460 | |
| Fork Size | s/e/l(mm) | 35/100/1070 | 40/122/1070 | 45/125/1070 | 45/125/1070 | |
| Fork Spread | b5(mm) | 210-705 | 260-840 | 244-705 | 270-840 | |
| Min. Ground Clearance | m2(mm) | 70 | 70 | 70 | 70 | |
| Aisle Width For Pallet 1000*1200 Crossways | Ast(mm) | 2964 | 3010 | 3007 | 3110 | |
| Min. Turning Radius | Wa(mm) | 1800 | 1922 | 1900 | 1922 | |
| Performance | Max. Trave Speed(Unladen/Laden) | km/h | 7.8/6.8 | 7.8/6.8 | 7.8/6.8 | 7.8/6.8 |
| Lifting Speed(Unladen/Laden) | m/s | 0.240/0.120 | 0.240/0.175 | 0.240/0.120 | 0.240/0.175 | |
| Lowering Speed(Unladen/Laden) | m/s | 0.260/0.315 | 0.270/0.305 | 0.270/0.305 | 0.270/0.305 | |
| Max. gradeability, Unladen/Laden | % | ≤10 | ≤10 | ≤10 | ≤10 | |
| Service Brake | Electromagnetic | |||||
| Motor, Charger | Drive motor | kw | 6.5 | 6.5 | 6.5 | 8 |
| Lift motor | kw | 6.3 | 12 | 6.3 | 12 | |
| Battery Type | Lead Acid | Lead Acid | Lead Acid | Lead Acid | ||
| Battery voltage/nominal capacity | V/Ah | 48/300 | 48/400 | 48/400 | 48/400 | |
| Charger | V/A | 48/40 | 48/50 | 48/50 | 48/50 | |
| Other | Type of Drive Control | AC | AC | AC | AC | |
| Sound Level At The Driver’s Ear Acc. To EN12053 | dB(A) | 75 | 75 | 75 | 75 | |
| Note: The parameters above are for reference only and are subject to technical change without notice. Thanks for your understanding. | ||||||
