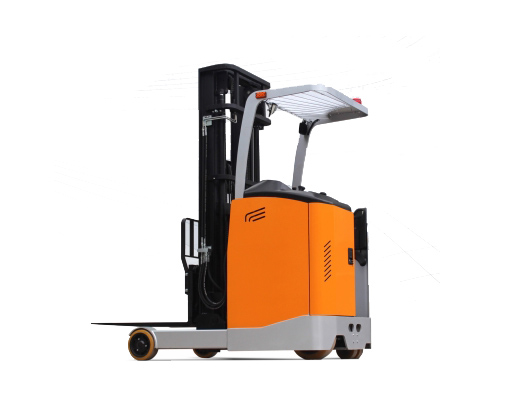

Product Features
- Tight structure, flexible operation. Central fixed driving unit, lowered center of gravity, and good stability, suitable for big loads and high lifts.
- Mast reaches out, small turning radius, suitable for different occasions with limited space.
- Full AC drive system, strong climbing ability, maintenance-free, regenerative braking, good stability, and high efficiency. No carbon brushes.
- Branded electric control system with multiple automatic protection systems to provide a higher level of functional safety.
- HD display instrument shows real-time status and provides fault display for troubleshooting and maintenance.
- EPS reduce 20% energy consumption, operates accurately, reduces driver fatigue, and increases productivity.
- Fork tilting function to prevent the load from tipping and improve load stability.
- Side pull battery with battery roller and trolley is suitable for multi-shift occasions and is more convenient to replace.
- High-strength German Krupp steel mast runs stably and reliably with no deformation.

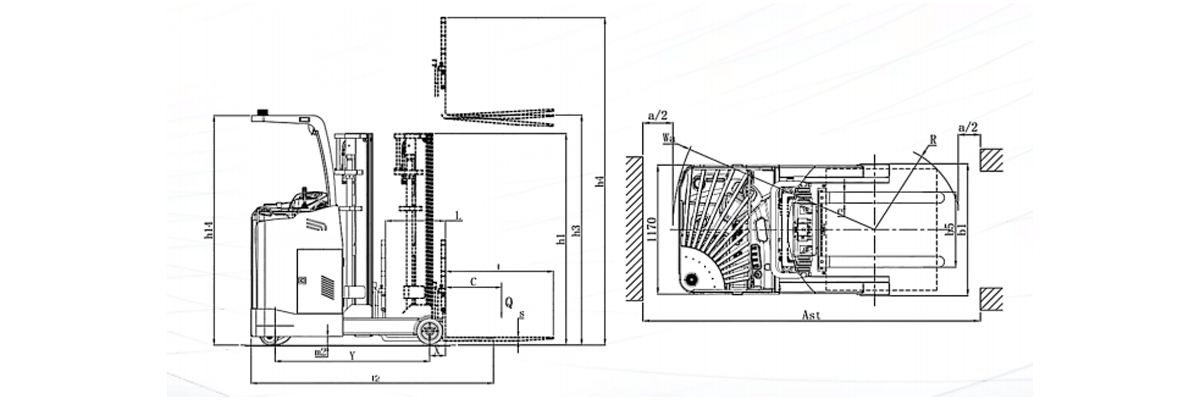

| Characteristics | Model No. | CQD15-45S | CQD20-45S | CQD25-45S | |
| Power Type | Electric | Electric | Electric | ||
| Operation Type | Stand Type | Stand Type | Stand Type | ||

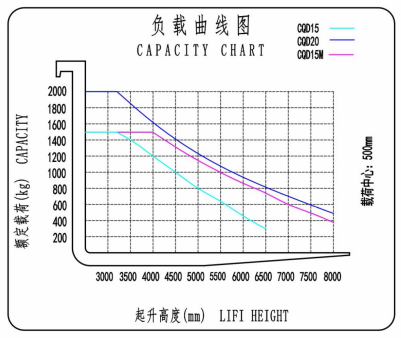

| Load Capacity | Q(kg) | 1500 | 2000 | 2500 | |
| Load Center | C(mm) | 500 | 500 | 500 | |
| Wheelbase | Y(mm) | 1383 | 1533 | 1693 | |
| Reach Distance | mm | 500 | 594 | 565 | |
| Weight | Service Weight(with Battery) | kg | 2700 | 3025 | 3200 |
| Wheels, Chassis | Wheel Type | PU | |||
| Front Wheel | ∅×w(mm) | 267*114 | 267*114 | 267*114 | |
| Drive Wheel | ∅×w(mm) | 382*142 | 382*142 | 382*142 | |
| Balance Wheel | ∅×w(mm) | 180*76 | 180*76 | 180*76 | |
| Wheel Tread, Front Wheel | b10(mm) | 1081 | 1081 | 1155 | |
| Dimensions | Mast Height Lowered | h1(mm) | 2100 | 2100 | 2360 |
| Free Lift | h2(mm) | 1500 | 1500 | 1500 | |
| Lifting Height | h3(mm) | 4500 | 4500 | 4500 | |
| Max. Height when Lifting | h4(mm) | 5480 | 5480 | 5480 | |
| Height of Overhead Guards | h14(mm) | 2280 | 2280 | 2280 | |
| Fork Face Min. ground Clearance | h13(mm) | 35 | 40 | 45 | |
| Fork Tilting Angle Front/Rear | ° | 3/5 | 3/5 | 3/5 | |
| Overall Length (Without Fork) | l2(mm) | 1752/2405 | 1902/2405 | 2060/2550 | |
| Overall Width | b1(mm) | 1195 | 1195 | 1270 | |
| Fork Size | s/e/l(mm) | 35/100/1070 | 40/122/1070 | 45/125/1070 | |
| Fork Spread | b5(mm) | 210-700 | 244-700 | 244-700 | |
| Min. Ground Clearance | m2(mm) | 80 | 80 | 80 | |
| Aisle Width For Pallet 1000*1200 Crossways | Ast(mm) | 2730 | 2882 | 3042 | |
| Min. Turning Radius | Wa(mm) | 1680 | 1836 | 1996 | |
| Performance | Max. Trave Speed(Unladen/Laden) | km/h | 8/7 | 8/7 | 8/7 |
| Lifting Speed(Unladen/Laden) | m/s | 0.330/0.245 | 0.300/0.235 | 0.300/0.235 | |
| Lowering Speed(Unladen/Laden) | m/s | 0.260/0.325 | 0.270/0.315 | 0.270/0.315 | |
| Max. gradeability, Unladen/Laden | % | ≤10 | ≤10 | ≤10 | |
| Service Brake | Electromagnetic | ||||
| Motor, Charger | Drive motor | kw | 4.5 | 6.5 | 6.5 |
| Lift motor | kw | 6.3 | 6.3 | 6.3 | |
| Battery Type | Lead Acid | Lead Acid | Lead Acid | ||
| Battery voltage/nominal capacity | V/Ah | 48/300 | 48/400 | 48/400 | |
| Charger | V/A | 48/40 | 48/50 | 48/50 | |
| Other | Type of Drive Control | AC | AC | AC | |
| Sound Level At The Driver’s Ear Acc. To EN12053 | dB(A) | 75 | 75 | 75 | |
| Note: The parameters above are for reference only and are subject to technical change without notice. Thanks for your understanding. | |||||
