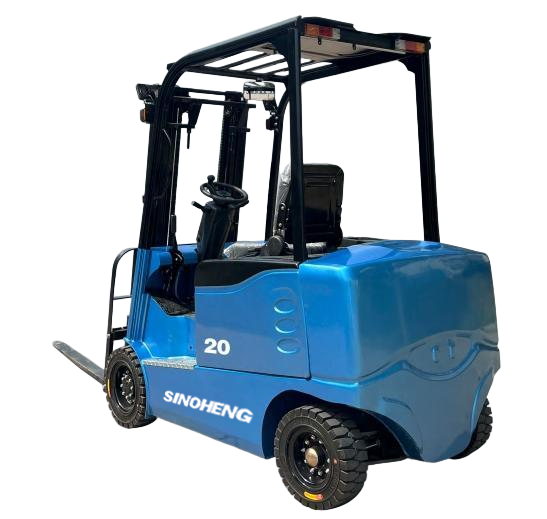

2.0/2.5 ton type G electric forklift

Category: Electric Forklift

Product Features

Seat switch to prevent misoperation of the emergency power off switch, such as walking and lifting. When the operation is out of control, it can easily cut off power supplies to avoid emergency accidents.
Low-voltage automatic protection extends battery life.

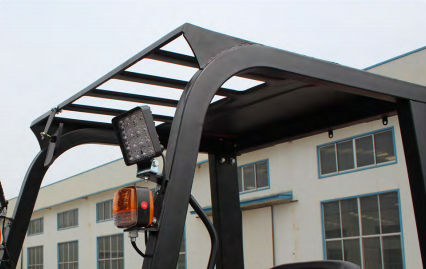

Strong roof protection frame design, safer operation; Lifting overload protection, explosion-proof design of the hydraulic system, even if the oil pipe bursts, the gantry will not fall quickly, improving safety.
Regenerative braking, slope antiskid, and ensuring driving safety.

Special battery for light working conditions, energy-saving, and environmentally friendly.
The lower pedal for getting on and off the vehicle is equipped with safety handrails, fully considering the humanized needs.
Intelligent meters provide an intuitive display of power, usage time, and fault codes, making operation and maintenance more convenient.

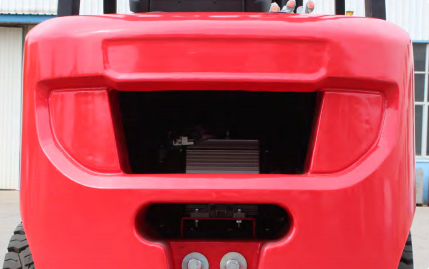

The simple design of the counterweight tail fully considers practicality and saves costs.

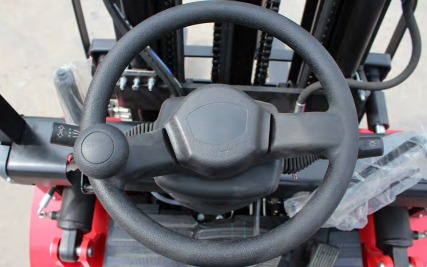

Adjustable steering wheel, wide field of view gantry, safe and comfortable ride, and increasing driver comfort.

General	Basic Model				CPD20-G	CPD25-G
	Power Type				Electric	Electric
	Rated Capacity			kg	2000	2500
	Load Centre			mm	500	500
Characteristic&Dimension	Lift Height			mm	3000	3000
	Free Lift Height			mm	130	130
	Fork Size	LWT		mm	107010040	107012240
	Mast Tilt Angle	F/R		Deg	6°/12°	6°/12°
	Front Overhang			mm	441	441
	Rear Overhang			mm	520	520
	Min. Ground Clearance(Bottom Of Mast)			mm	115	115
	Overall Dimensions	Length To Face Of Fork (With Fork)		mm	2595	2595
		Overall Width		mm	1160	1160
		Mast Lowered Height		mm	1980	1980
		Mast Extended Height (With Backrest)		mm	4050	40050
		Overhead Guard Height		mm	2220	2220
	Turning Radius (Outside)			mm	2480	2480
Performance	Speed	Travel (Unladen)		km/h	13.5	13.5
		Lifting (Laden)		mm/sec	340	320
		Lowering (Laden)		mm/sec	450	450
	Max. Drawbar Pull (Laden/Unladen)			KN	14	14
	Max. Gradeability (Laden)			%	15	15
Chassis	Tyre	Front		mm	7.00-12-12PR	7.00-12-12PR
	Tyre	Rear		mm	6.00-9-10PR	6.00-9-10PR
	Tread	Front		mm	970	970
	Tread	Rear		mm	980	980
	Wheelbase			mm	1650	1650
Weight	Self Weight			kg	3260	3510
	Weight Distribution	Laden	Front Axle	kg	4890	5410
		Laden	Rear Axle	kg	570	610
		Unladen	Front Axle	kg	1510	1280
		Unladen	Rear Axle	kg	1750	2230
Transmission	Batteryy	Voltage/Capacity		V/Ah	76.8V150	76.8V150
	Motor	Power Of Walking Motor		KW	10	10
	Motor	Oil Pump Motor Power		KW	15	15
	Operating Pressure (For Attachments)			Mpa	17.5	17.5
*Our company reserves the right to change product design and specifications without prior notice.
