Product Features
Featured configuration
- Smooth lines and dynamic appearance. The whole forklift adopts a new appearance design with smooth lines and has been applied for a patent.
- Core components such as the gearbox and drive axle are imported, with a low failure rate and reliable quality.
- Equipped with a casting steering front axle, compact structure, small deformation after load, dustproof and waterproof, improving life and reliability.
- Adopting high high-quality air filter with high strength and aging resistance. It can better adapt to the harsh working environment.
- The mast channel steel section is enlarged, and the overall structure is solid and reliable.
Safety
- The boarding pedal features a full anti-skid design to ensure the safety of forklift drivers when getting on and off the forklift.
- The connection between the steering axle and the frame is supported by shock-absorbing rubber pads, which reduce the vibration of the whole vehicle and improve comfort.
- Seat OPS function prevents children and unoccupied persons from driving improperly and ensures the safety of the driver.
Customizable options
- The engine can be selected from a variety of standards and equipped with various brands. Quanchai, Xinchai, supports European and American emission standards.
- Supports customization of mast with heights from 3 to 7.5 meters
- Can be retrofitted with side shift and Fork Positioners
- Solid and pneumatic tires available.

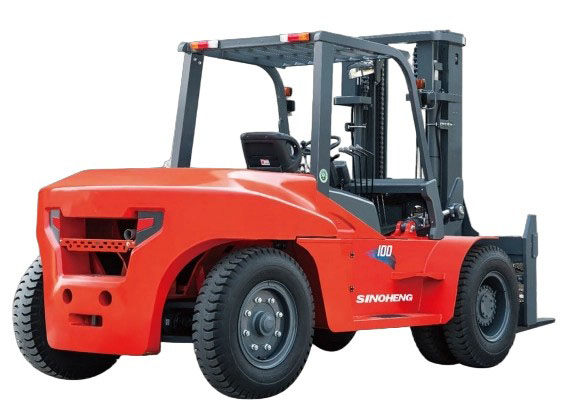

| Specification | CPC100-H | |
| Fuel model | Diesel | |
| Load capacity | kg | 10000 |
| Load center | mm | 600 |
| Lift height | mm | 3000 |
| Full free lift height | mm | 220 |
| Fork dimension | mm | 1220*175*80 |
| Mast tilting angle | Deg. | 6/12 |
| Min.turning radius | mm | 3950 |
| Groud clearance | mm | 250 |
| Overhead guard height | mm | 2560 |
| Front overhang | mm | 710 |
| Max travel speed | km/h | 26 |
| Max lift speed | mm/s | 400 |
| Max. traction power | KN | 52 |
| Max. gradeability | % | 20 |
| Total length with fork | mm | 5565 |
| Total length without fork | mm | 4345 |
| Total width | mm | 2260 |
| Mast extended height | mm | 4450 |
| Mast lowered height | mm | 2840 |
| Tyres front | 9.00-20-14PR | |
| Type rear | 9.00-20-14PR | |
| Wheelbase | mm | 2800 |
| Tread | mm | 1600/1700 |
| Service weight | kg | 12500 |
| Battery | V/Ah | (12/100)*2 |
| Engine model | Xichai 4DF3 | |
| Engine power | kw/r.p.m | 85 |
| Transmission | hydraulic | |
| Work press | Mpa | 20 |
