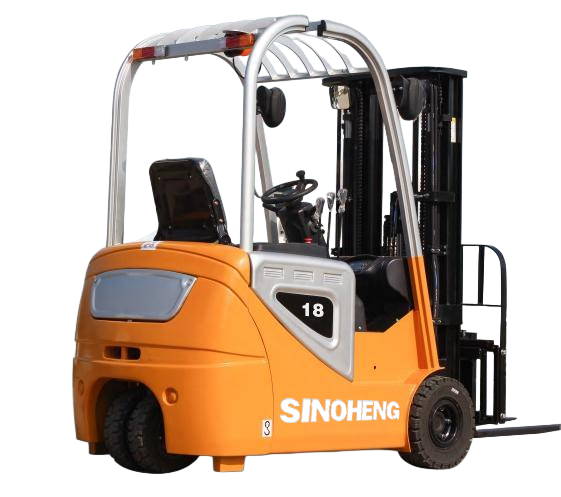

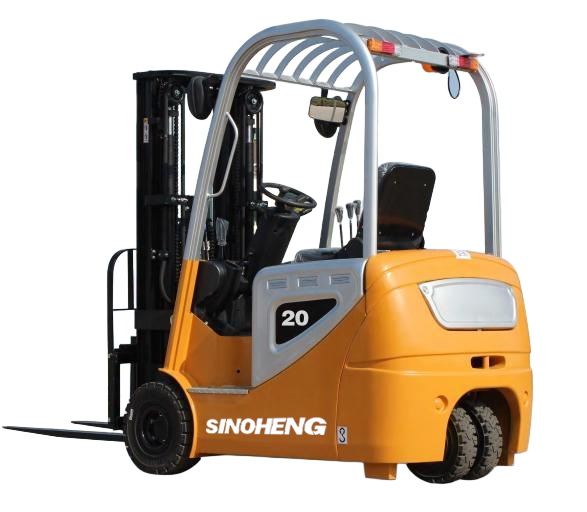

1.6/1.8/2.0 ton 3-Wheel electric forklift (Dual Drive)

Power Type: Battery
Tire Type: Solid
Operator Position: Seated Position
Load Center: 500mm
Lift Height: 3000mm

Category: Electric Forklift

Description
Contact

Product Features

Featured configuration

High-efficiency AC motor, perfectly matched with a branded controller and battery pack, delivering more powerful performance.
Cast iron counterweight for effective ballasting, combining aesthetic appeal with practicality.
Low-position boarding step with a safety handrail, meticulously designed to meet ergonomic needs.
Smart dashboarding with intuitive display of battery level, operating hours, and fault codes for easier operation and maintenance.
Adjustable steering wheel, wide-view mast, and safety comfort seat to enhance driver comfort.

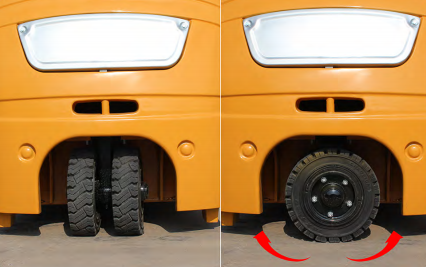

Compact design with a small turning radius for superior maneuverability.

Safety

Seat switch to prevent misoperation of the emergency power off switch, such as walking and lifting. When the operation is out of control, it can easily cut off power supplies to avoid emergency accidents.
Low-voltage automatic protection extends battery life.
Strong roof protection frame design, safer operation; Lifting overload protection, explosion-proof design of the hydraulic system, even if the oil pipe bursts, the gantry will not fall quickly, improving safety.
Regenerative braking, slope antiskid, and ensuring driving safety.

Maintenance

AC motor for easy maintenance.
Display fault code dashboard for convenient maintenance.
High-performance maintenance-free battery.
Controller self-diagnostic system.
Solid tires.

Summary
Model							CPE16-B	CPE18-B	CPE20-B
Power Type							Battery	Battery	Battery
Tire Type							Solid	Solid	Solid
Operator Position							Seated Position	Seated Position	Seated Position
Rated Load Capacity						kg	1600	1800	2000
Load Center						mm	500	500	500
Features&Dimensions
Lift Height						mm	3000	3000	3000
Free Lift Height						mm	0	0	0
Fork Dimensions						mm	107010035	107010040	107010040
Mast Tilt Angle Front/Rear						Deg	6/6.5	6/6.5	6/6.5
Front Overhang						mm	365	365	370
Rear Overhang						mm	200	200	200
Overhead Guard Clearance						mm	1025	1025	1025
Min. Ground			Mast			mm	80	80	80
Min. Ground			Wheelbase Center			mm	85	85	85
Dimensions			Length (without forks)			mm	1955	1955	2060
			Width			mm	1100	1100	1160
			Mast Lowered Height			mm	2020	2020	2020
			Mast Raised Height (with load)			mm	4010	4010	4010
			Overhead Guard			mm	2110	2110	2110
Minimum Turning Radius						mm	1555	1555	1660
Minimum Right-Angle Stacking Aisle Width						mm	3200	3200	3350
Performance
Speed			Travel (Unloaded)			Km/h	13	13	13
			Travel (Loaded)			Km/h	12.5	12.5	12.5
			Lifting (Unloaded)			mm/sec	300	300	300
			Lifting (Loaded)			mm/sec	280	280	280
Maximum Traction Force (Loaded/Unloaded)						KN	9	10	11
Maximum Gradeability						%	20	20	15
Tires
Tyre			Front				18*7-8	18*7-8	200/50-10
Tyre			Rear				15*4.5-8	15*4.5-8	15*4.5-8
Tread			Front			mm	980	980	970
Tread			Rear			mm	175	175	175
Wheelbase						mm	1355	1355	1460
Weight
Curb Wight						kg	2800	2950	3100
Axle Load	Loaded			Front Axle		kg	4035	4430	4675
	Loaded			Rear Axle		kg	565	520	525
	Unloaded			Front Axle		kg	1410	1465	1480
	Unloaded			Rear Axle		kg	1600	1685	1720
Power
Battery		Voltage/Capacity				V/Ah	48/420	48/500	48/600
Battery		Weight				kg
Motor		Drive				kw	4.8*2	4.8*2	4.8*2
Motor		Load Handling				kw	11	11	11
Controller		Drive			Type		CURTIS AC	CURTIS AC	CURTIS AC
Controller		Load Handling			Stage F/R		CURTIS AC	CURTIS AC	CURTIS AC
*Our company reserves the right to change product design and specifications without prior notice.
